Product Details:
|
| Core Components: | Pressure Vessel | Capacity: | 5M3 |
|---|---|---|---|
| Dimension(L*W*H): | 2300*2300*3154mm | Pressure Range: | 0.35 - 1.3 Mpa |
| Key Selling Points: | Easy To Operate | Setting Pressure: | 3.2 MPa |
| High Light: | 5000L Micro Bulk Tanks,3M3 Cryogenic Micro Bulk Tanks,Cryogenic Liquid Oxygen Storage Tank |
||
Fast Delivery 3M3 5M3 5000L Micro Bulk Tanks Cryogenic Tanker Liquid Oxygen Storage Tank

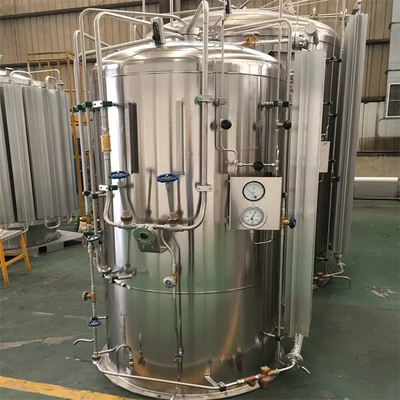

Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M3 5M3, 7.5M3. Micro tanks are pressure vessels with inner and outer container dual structure. The inner container is made of S30408 stainless steel, suspended in the Q345R outer container with supporting devices. The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiber glass material.Micro tank is suitable for transporting vaporized gases when it''s connected with a vaporizer.It has been widely used in different field
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Hotels, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops
|
|
Max Working Pressure(MPa)
|
0.84MPa
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine
|
|
Capacity
|
2000L
|
|
Place of Origin
|
China
|
|
Brand Name
|
DOER
|
|
Dimension(L*W*H)
|
1843*1960*2340mm
|
|
Weight
|
1264
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High Safety Level
|
|
Showroom Location
|
None
|
|
Inner Cylinder
|
S30408
|
|
Outer Cylinder
|
Q345R
|
A: We specialize in producing Cryogenic Air Separation Plant, LNG Plant, CO2 Recovery Plant, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), Semi-trailer Tanker, Vaporizer, VPSA/PSA Oxygen/Nitrogen Generator, Cryogenic Liquid Pump, Gas filling Station, Compressor and dry ice making/cleaning machines etc. Any interests you can feel to contact us for details. Thanks.
A: Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe& Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.
